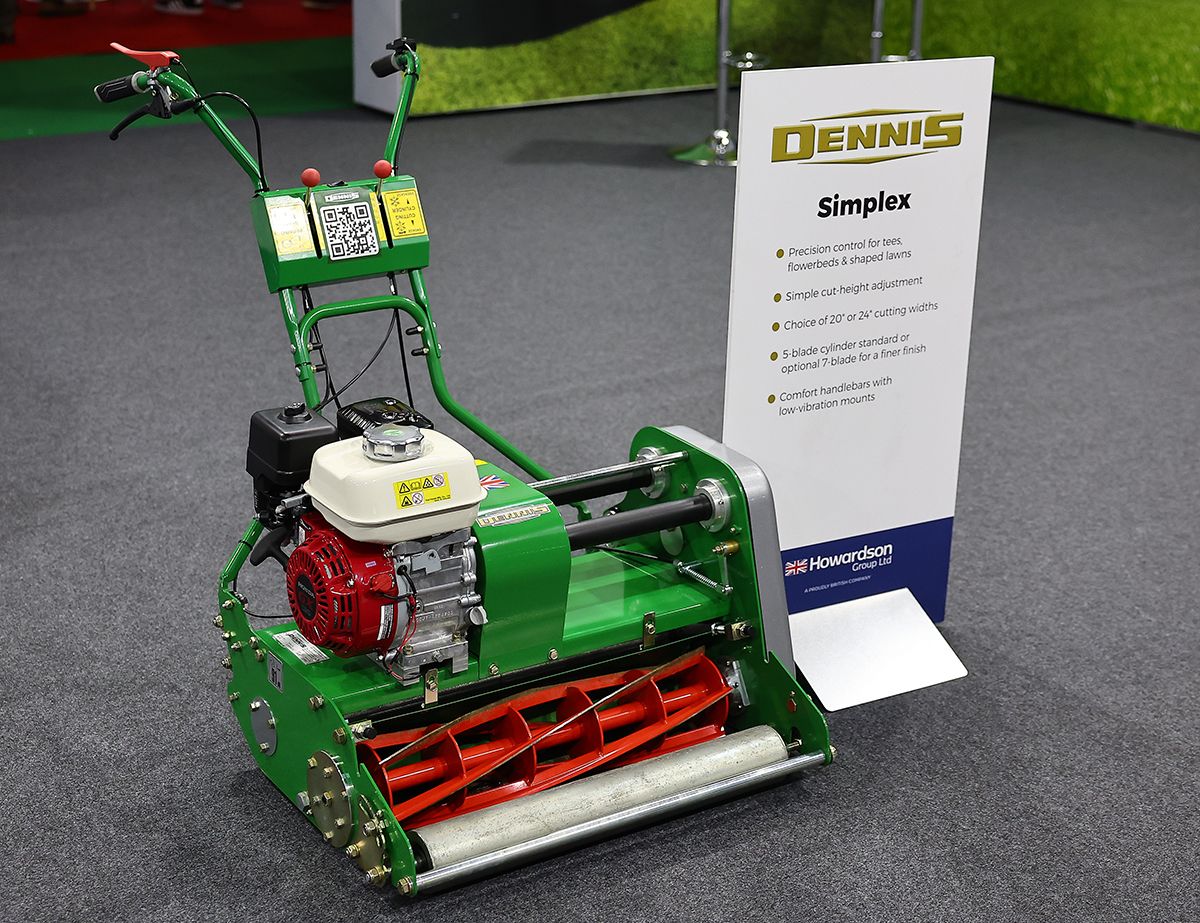

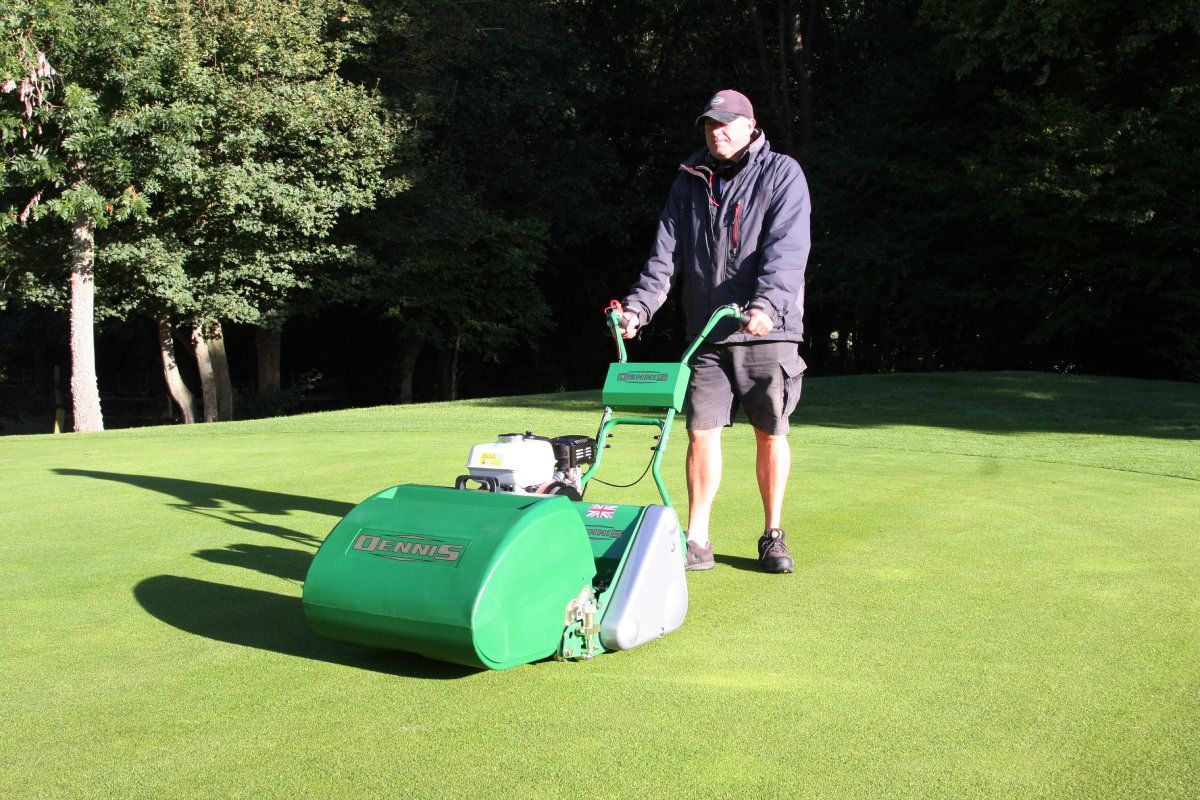

Simple operating systems mean total control around flowerbeds and complex shaped lawns. The Simplex is available in both 51cm (20”) and 61cm (24”) cutting widths with either a 5 or 7 bladed cylinder and builds upon many of Dennis’ well proven design concepts.

  • Strong, modular construction with high capacity grassbox
  • Low vibration handlebar mounts
  • Easy height of cut adjustment with quadrant height indicators
  • Deflector plate to protect belt drive cover

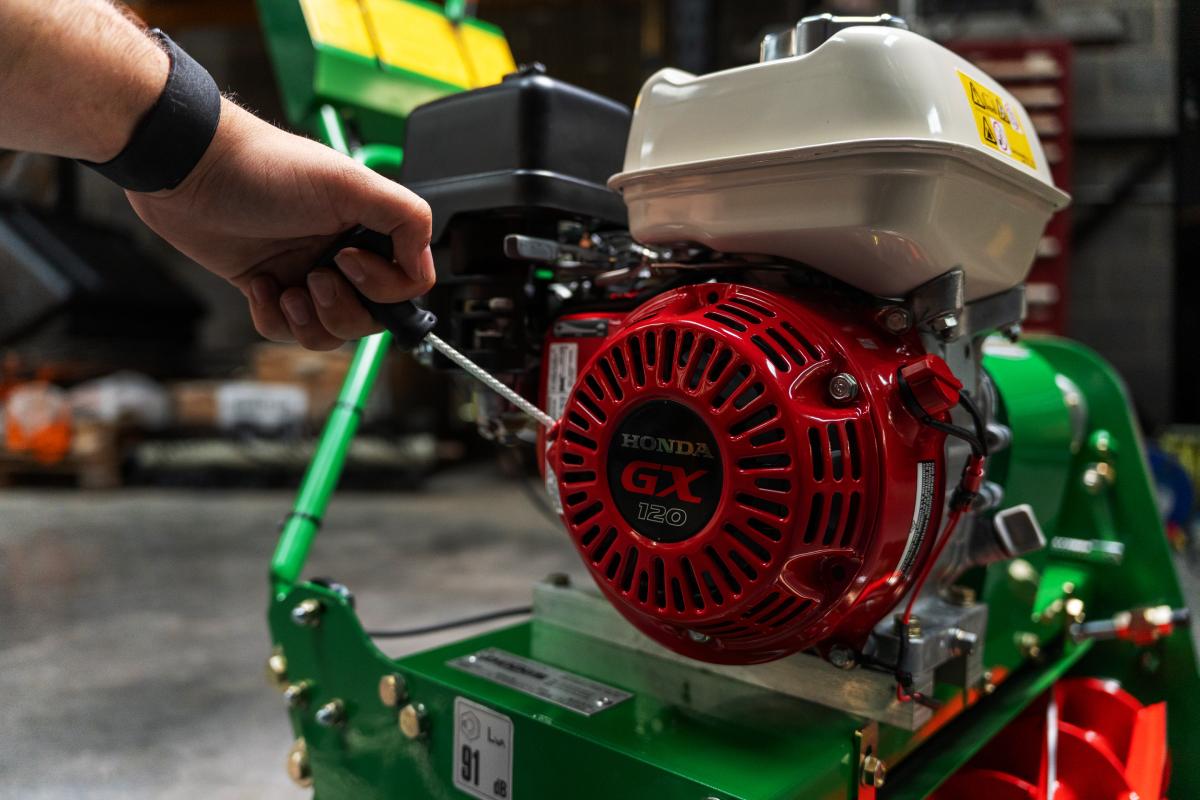

  • Honda power – ultimate easy start long life engine with Q9 low noise, low vibration technology
  • Hi comfort handlebars

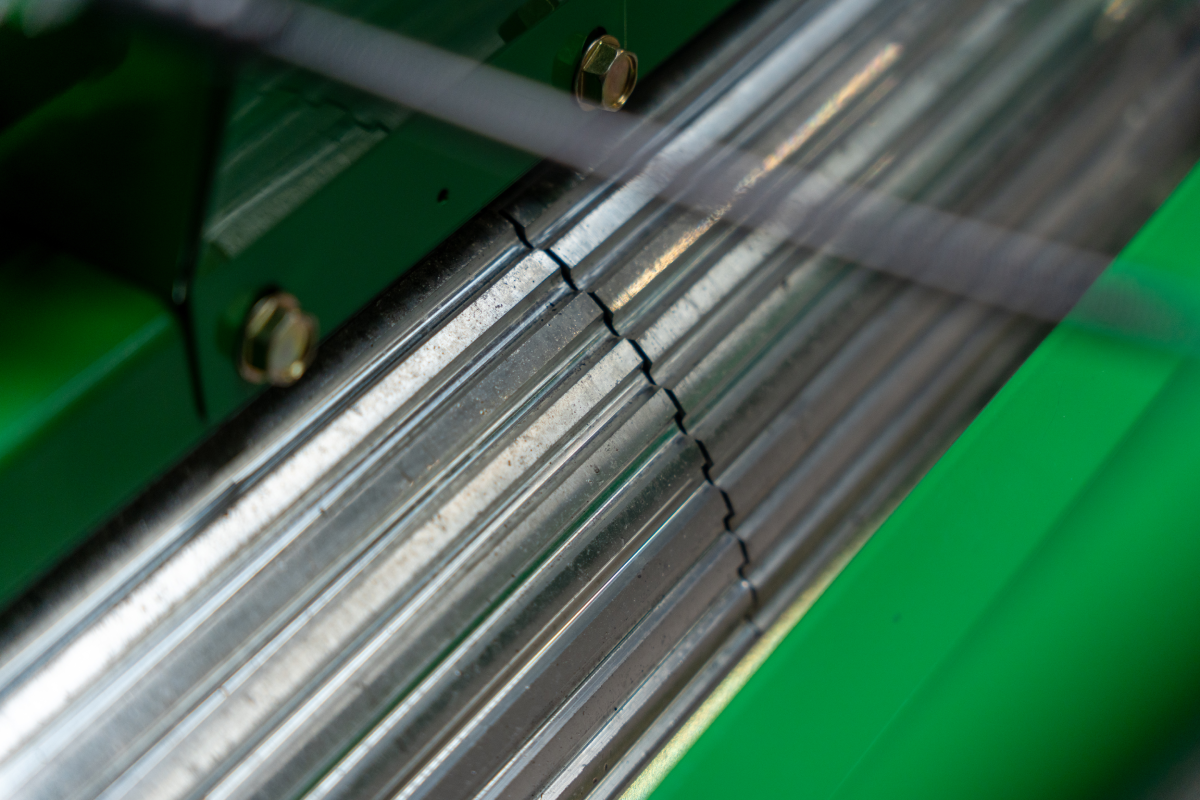

  • Aluminium rear roller is in 2 pieces with all steel differential for long life and easy turning

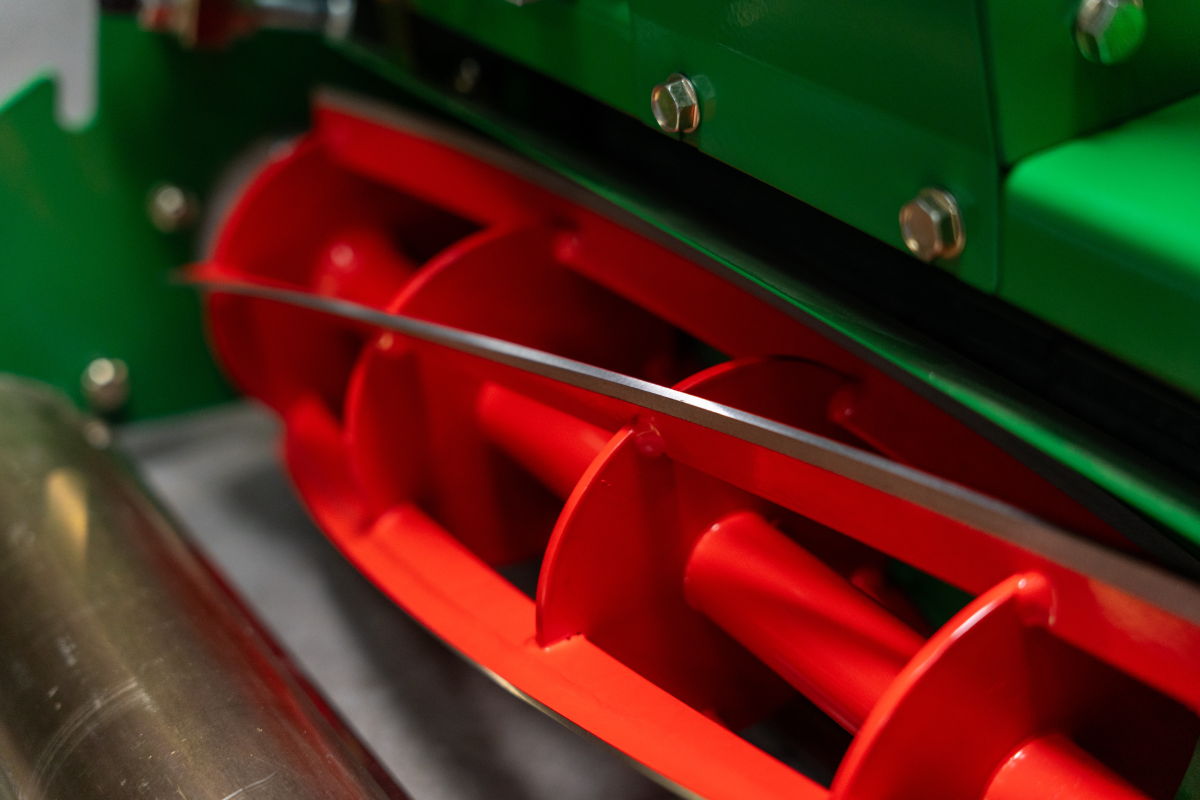

  • Optional 7 bladed cylinder for a finer cut
  • Good sight lines for accurate striped mowing
  • Slow uptake clutch system for smooth take off

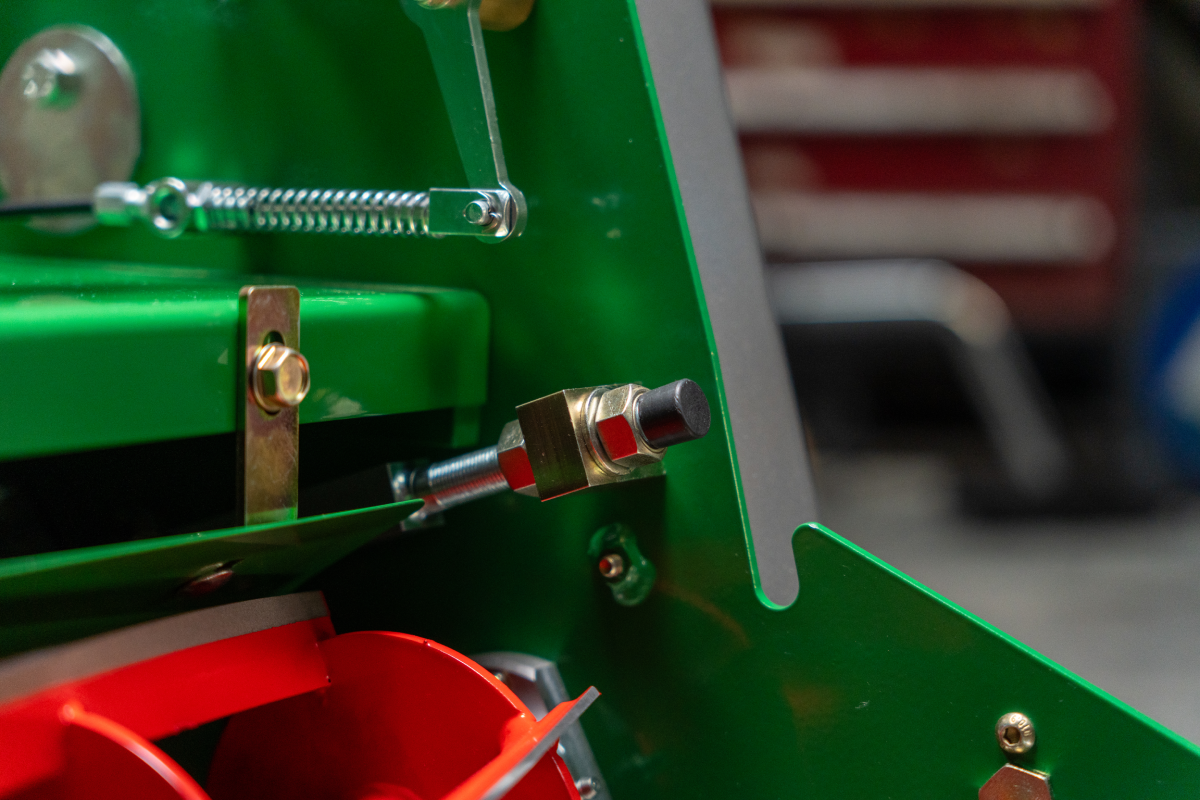

  • Simplex - Easy height of cut adjustment

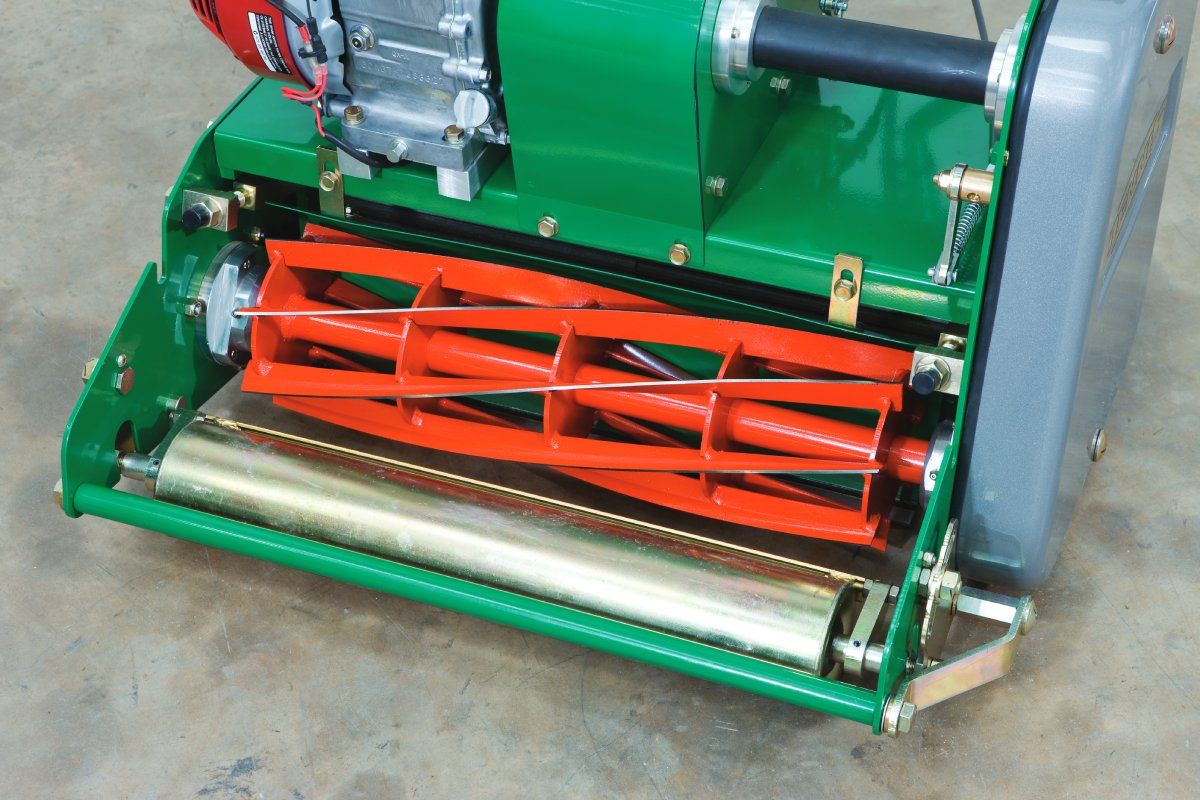

  • Simplex - Choice of two cutting widths with 5 and 7 blade options

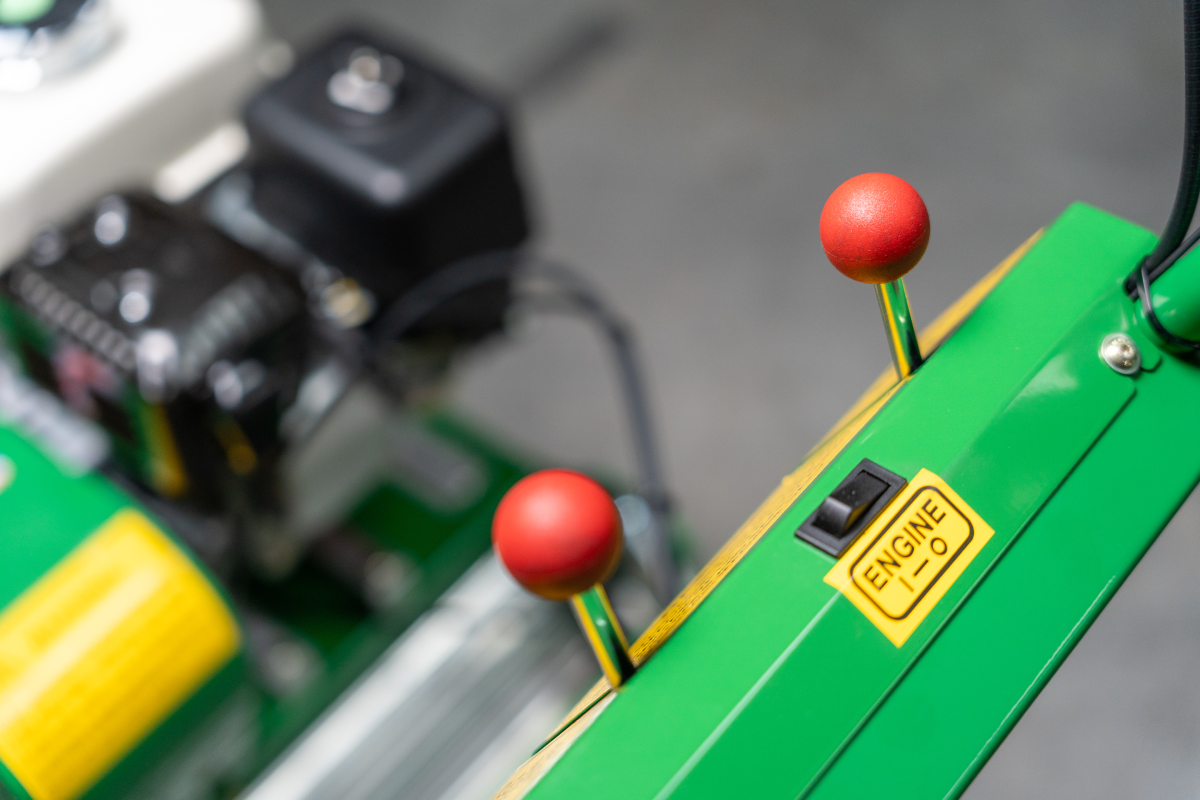

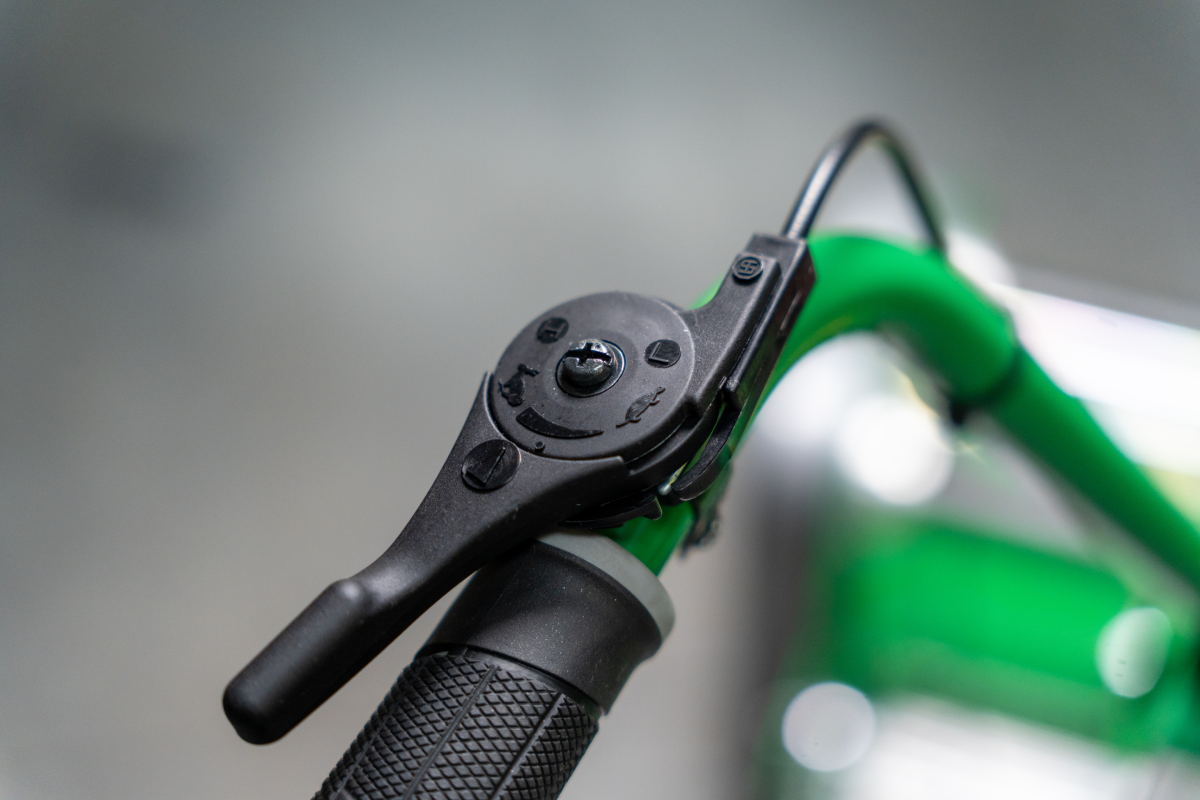

  • Simplex - Hi comfort handlebars with easy to operate controls incorporating the latest safety features

Specification

Simplex

  • Specification510610
    Cutting Width

    510mm (20")

    610mm (24")

    Cylinder

    5 or 7 blade

    Height of Cut

    6mm - 30mm (1.1/4")

    Cutter Performance

    100 cuts/m (92 cuts/yd)

    Dimensions L x W x H

    1300 x 700 x 1000mm

    1300 x 800 x 1000

    Weight (inc Cyl)

    120kg

    100kg

    Engine Petrol

    Honda 4hp

  • Rubber coated rear roller (for power unit)

    510 – D009/R
    610 – D010/R

  • Article - The-Dennis-FT510-will-be-of-interest-to-visitors-at-BTME-2018

    Dennis and SISIS at BTME 2018

    Dennis and SISIS will once again be exhibiting at BTME 2018 on stand A5 where greenkeepers, course managers and turf managers will be able to view an extensive range of turf maintenance equipment.

    View Article

FAQS

What is the Simplex designed for?

The Simplex is a versatile cylinder mower designed for: Cricket squares and pitches, Golf courses and tees, Ornamental lawns, Local authority-maintained turf
Its simple operating systems make it especially effective for mowing around flowerbeds and complex-shaped lawns.

What cutting widths are available?

The Simplex is available in two sizes:510mm (20"), 610mm (24")

How many blades does the cylinder have?

You can choose between:5-blade cylinder – for general cutting and longer grass, 7-blade cylinder – for a finer finish on well-maintained turf

Which rear roller is fitted to the Simplex models?

Two-piece aluminium rear roller with steel differential for long life and easy turning

What is the height of cut?

7mm to 30mm

Which engine is fitted?

Honda GX120

What is the weight?

510mm model: 120kg (including cylinder) 610mm model: 100kg (including cylinder)

What are the Dimensions of the Simplex models? l/w/h

1300 x 700 x 1000mm (510mm).. 1300 x 800 x 1000(610mm)

What optional extras are available?

Rubber coated rear roller, 7 blade cylinder instead of 11.
